ACSeries Three-point Combination AC2000 1/4'' air source treatment unit ( smc type )

Price:	10.0 USD
Payment Terms:	T/T,L/C,WU
Special Groups:	(smc series )Air treatment units (6)
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: AC2000-02

Production Capacity: 5000pcs/month

Delivery Date: 15Days

Brand name: MAKE or OEM

Place of Origin: Zhejiang,China (Mainland)

Pressure: Medium Pressure

Means of Transport: Ocean,Land,Air

Packing: Carton

Brand Name: MAKE Pneumatic

Model No: AC2000-02

Standard or Nonstandard: Standard

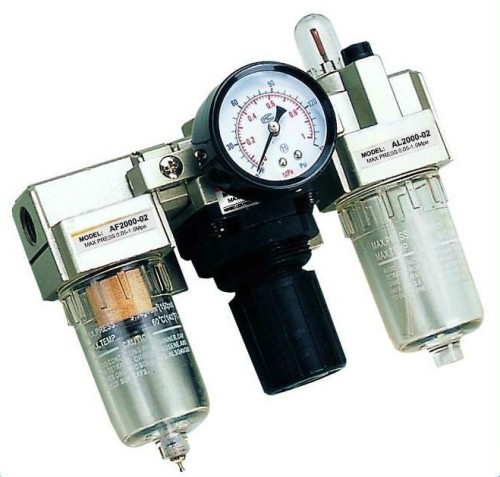

AC2000 FRL combination unit
Bore size:G1/4
Filter precision:25 to 40u
Pressture:0.05 to 0.85Mpa
Temperature:5 to 60C...
Model Number: AC

AC F.R.L air treatment units (SMC Series)are same style as SMC.It includes 3 parts: filter, regulator and lubricator. It has standard dimensions and steady performance. We manufacture all important parts by ourself to insure the quality. Outsourcing parts were selected and tested very strictly. Auto Drain can be selected. All size have overflow function.

Model expressing methods

AC	2000	02	M
TYPE	Rated flow(L/min)	Port size	Drainage mean
AC Series	2000:1500 L/min 3000:2000 L/min 4000:4000 L/min 5000:5000 L/min	02: G1/4″ 03: G3/8″ 04: G1/2″ 06: G3/4″ 10: G1″	Blank: Differential pressure drainage A: Automatic drainer M: Sandad manual style

Specification

Type		AC2000-01(02)	AC3000-02(03)	AC4000-04	AC5000-06(10)
Work me dium		Air
Port size		G1/8″( G1/4″)	G1/4″( G3/8″)	G1/2″	G3/4″( G1″)
Filtration precision		5~25µm
Adjustable pressre range		0.05~0.85Mpa
Maximum working pressure		1Mpa
Proof pressure		1.5Mpa
Temperature range		5~60℃
Propositional lubrication		ISO VG32 or the same level lubrication
Valve type		Relieving type
Rated flow		1500 L/min	2000 L/min	4000 L/min	5000 L/min
Pressure gauge port		G1/8″		G1/4″
Materials	Body	AL alloy press-casting forming
	Bowl	Polycarbonate
	Bowl Guard	Iron
Component	Filter	AF2000	AF3000	AF4000	AF5000
	Regulator	AR2000	AR3000	AR4000	AR5000
	Lubricator	AL2000	AL3000	AL4000	AL5000
