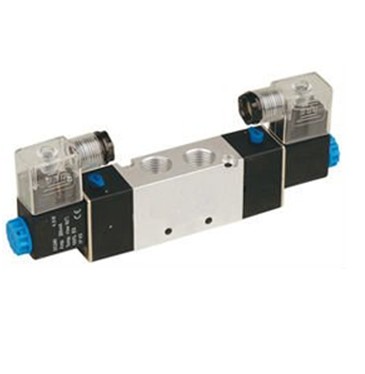

solenoid valves 4V330-10 from China manufacturer - Zhejiang Fenghua MAKE Automation Industrial Equipment Co., Ltd.

Price:	8.0~28.0 USD
Payment Terms:	T/T,L/C,WU
Special Groups:	5 way single-head solenoid valves (3)
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 4V330-10

Production Capacity: 10000pcs/month

Delivery Date: 15Days

Power:: Pneumatic

Structure:: Control

Temperature of Media:: Normal Temperature

Means of Transport: Ocean,Land,Air

Packing: CARTON

Brand Name: MAKE or OEM

Standard or Nonstandard:: Standard

Material:: Alloy

Media: GAS

I.Directional solenoid valves
2.Acting Type:direct acting
3.Coil Type:DIN type/Flyling lead
4.Protective Class:IP65(DIN40050)...

Valve Body Material:Aluminium Alloy or Stainless Steel

Model	4V310-10	4V320-10	4V330C-10	4V330E-10	4V330P-10
	4A310-10	4A320-10	4A330C-10	4A330E-10	4A330P-10
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Joint Pipe Bore	Inlet = outlet = G3/8 Exhaust = G1/4
The Position Counting	Two-position Five-way		Three-position Five-way
Operating Temperature	5~50°C(41-122°F)
Effective Sectional Area	30mm²(Cv=1.67) 25mm²(Cv=1.39) 18mm²(Cv=1.00) 30mm²(Cv=1.67) 18mm²(Cv=1.00)
Working Pressure	0.15~0.8Mpa
Max. Pressure Resistance	1.2Mpa
Power Consumption	AC:380VA :2.5v DC:24v:3.0W AC220V:2.0VA AC110V:2.5VA DC12V:2.5W
Protection Class	IP65(DIN40050)
Insulation	F Class
Wiring Form	Lead Wire or Connector Type
Voltage Range	±10%
Highest Action Frequency	5 Cycle/Sec		3 Cycle/Sec
Shortest Excitation Time	0.05 Second

This series solenoid valve adopts integral slot throttle structure. The valve hole is processed with special high precision finishing technique. The product has good performance and good change over with long service life,handsome shape and large airflow. It is widely applied to pneumatic system.

Model	3V310-08	3V320-08	3V310-10	3V320-10	4V310-08	4V320-08	4V330C-08	4V330E-08	4V330P-08
	3A310-08	3A320-08	3A310-10	3A320-10	4A310-08	4A320-08	4A330C-08	4A330E-08	4A330P-08
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Joint Pipe Bore	Inlet=outlet = G1/4		Inlet=outlet =G3/8		Inlet = outlet =Exhaust = G1/4
The Position Counting	Two-position Three-way				Two-position Five-way		Three-position Five-way
Operating Temperature	5~50°C(41-122°F)
Effective Sectional Area	25mm²(Cv=1.39)		30mm²(Cv=1.67) 25mm²(Cv=1.39) 18mm²(Cv=1.00) 30mm²(Cv=1.67) 18mm²(Cv=1.00)
Working Pressure	0.15~0.8Mpa
/Max. Pressure Resistance	1.2Mpa
Power Consumption	AC:380VA :2.5v DC:24v:3.0W AC220V:2.0VA AC110V:2.5VA DC12V:2.5W
Protection Class	IP65(DIN40050)
Insulation	F Class
Wiring Form	Lead Wire or Connector Type
Voltage Range	±10%
Highest Action Frequency	5 Cycle/Sec				5 Cycle/Sec		3 Cycle/Sec
Shortest Excitation Time	0.05 Second

Our solenoid valve high temperature resistant and Low temperature resistance.It can use in 250 ℃ ,and also can use in -40 ℃,Working pressure Minimum can achieve 0.05Mpa,maximum can achieve 1.4Mpa.
